SUKO-1

PTFE Polymer Hybrid Flex Hose specifications

The most useful characteristic of polymer is chemical resistance. It also excels in water repellency, non-tackiness, low friction and electrical insulating properties. Utilizing the features of polymer, we have developed Hybridflex and PTFE hoses.

polymer Hybrid Flex Hose

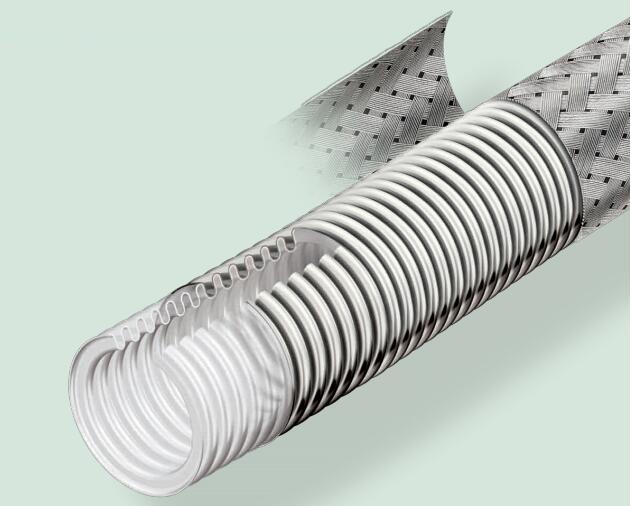

Hybridflex is a flexible hose consisting of two corrugated pipes, polymer inner pipe and stainless steel outer pipe. The polymer inner layer excels in corrosion resistance and ensures flexibility. The stainless steel outer layer ensures pressure resistance.

Standard specifications

Flexible hose inner layer            PTFE (fluororesin)


Flexible hose outer layer           SUS316L


Wire braid material                    SUS304


Working pressure                      See the table.


Working temperature               −20℃~180℃

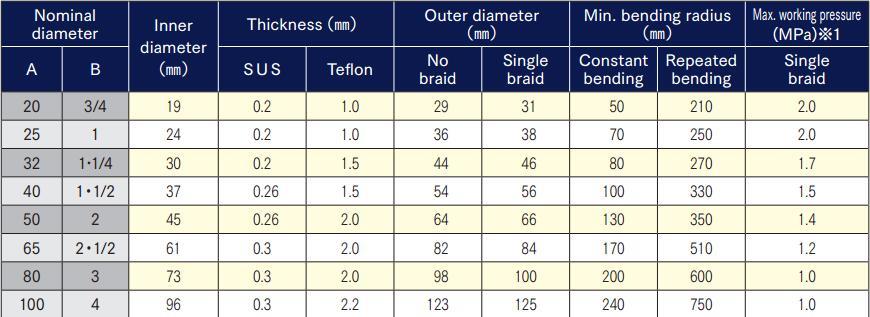

Standard dimensions and performance

polymer Hybrid Flex Hose
