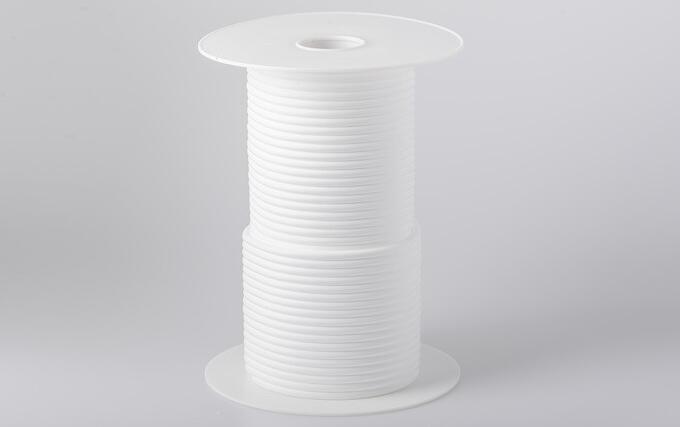

PTFE Universal Rope is a specially formulated Sealing Material made of High Grade 100 % Virgin PTFE.
PTFE Universal Rope is soft un-sintered 100% pure expand PTFE having a very smooth surface finish and is characterized by very low co-efficient of friction. This makes it a very useful sealing material and is used as a rope gasket on flanged connections of pipe, fittings, tanks &vessels and such other mating surfaces. as well as a gland packing in valve stem application.
PTFE Rope Gasket is a specially formulated sealing material that withstands vibration, wide operating temperature range and has extremely low coefficient of friction. The friction free characteristic promotes smoother action and increases the life of the gasket many times over.
It is used as a gasket on flanged connections, pressure vessels and all other similar mating faces as well as packing for valves and similar gland applications
Applications:
- Withstands Vibration.
- Wide Operating Temperature Rang.
- Extremely Low Coefficient of Friction. The Friction Free Characteristic Promotes Smoother action and increases the Life of the Gasket Many Times Over.
- It is used as a gasket on flanged connections, Pressure Vessels, Pumps, Heat Exchangers and all other similar mating Faces as well packing for valves and similar Gland Applications.
- It is Suitable for Corrosive Chemicals and Abrasive Media.
- Widely Used in Food and Pharmaceuticals Industries, Power Plants, Refineries, Fertilizer Plants, Glass Lined Reactors, Glass Heatexchanges, Shell & Tube Heat Exchanges, Flow Instruments, manhole and manhole covers, steam vessel flanges .
Service Parameters :
- Temperature : – 100° C to +260° C.
- PH Range : 0- 14.
- Pressure : 0 to 20 kg/cm2.
- Sizes and Shape :1.5 mm to 30 mm.Square/Round Sections.
