Teflon ultra-high temperature cable PTFE wire extruder production line machine
SPECIFICATIONS
| Machine model | Pay-off line type | Pay-off bobbinsize | Screw diameter | Main unit power | Wire spec. | Cooling device | Accumulator capacity | Capstan power | Wire speed | Take-up line type | Receving reel | Take-up line power |
| ZY-STJ-35 | Double axes | PN400-630 | ∅35 | 4KW | ∅0.8-2.0 | Single layer | 30 | 1.5KW | 20m | Axis packing | PN400-630 | 1.5KW |
| ZY-STJ-45 | PN400-630 | ∅45 | 4KW | ∅1.5-3.0 | 1.5KW | 20m | PN400-630 | 1.5KW | ||||
| ZY-STJ-60 | PN630-800 | ∅60 | 4KW | ∅2.5-5.0 | 2.2KW | 15m | PN500-630 | 2.2KW | ||||
| ZY-STJ-80 | PN400-630 | ∅80 | 5.5KW | ∅4.0-6 | 2.2KW | 12m | PN500-800 | 3.7KW | ||||
| ZY-STJ-90 | PN630-800 | ∅90 | 5.5KW | ∅5.0-8 | 3.7KW | 8m | PN630-1000 | 5.5KW | ||||
| ZY-STJ-100 | PN400-630 | ∅100 | 7.5KW | ∅8.0-12 | 5.5KW | 8m | PN800-1250 | 5.5KW | ||||
| ZY-STJ-120 | PN400-630 | ∅120 | 7.5KW | ∅10-18 | 5.5KW | 5m | PN800-1250 | 5.5KW |

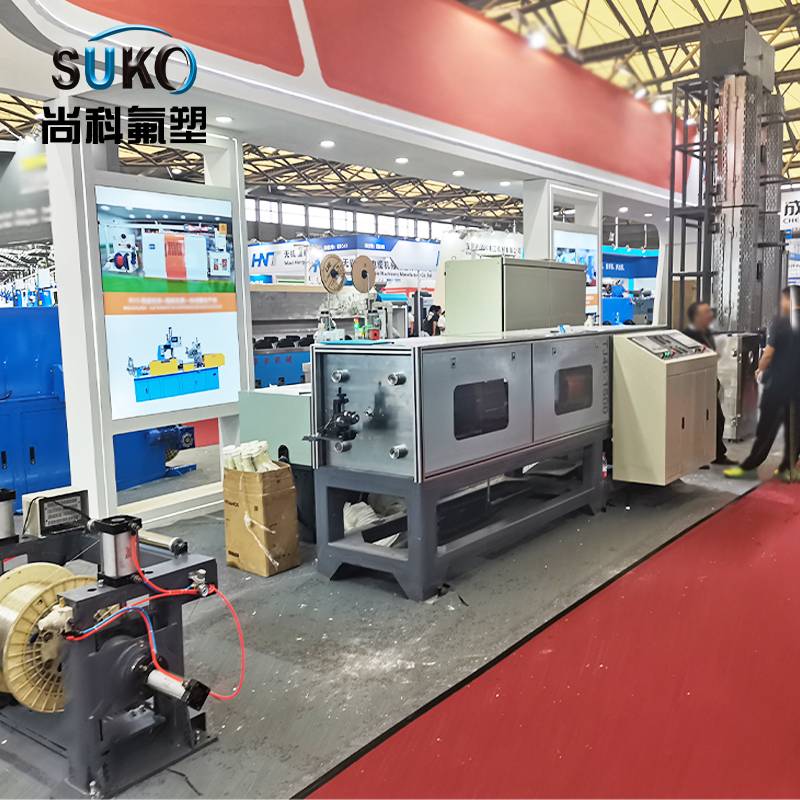

Teflon high temperature wire extruder production line machine consists of several main components:
Pay-off frame: used to place the reel or reel of Teflon material so that the material can be introduced into the extrusion host.

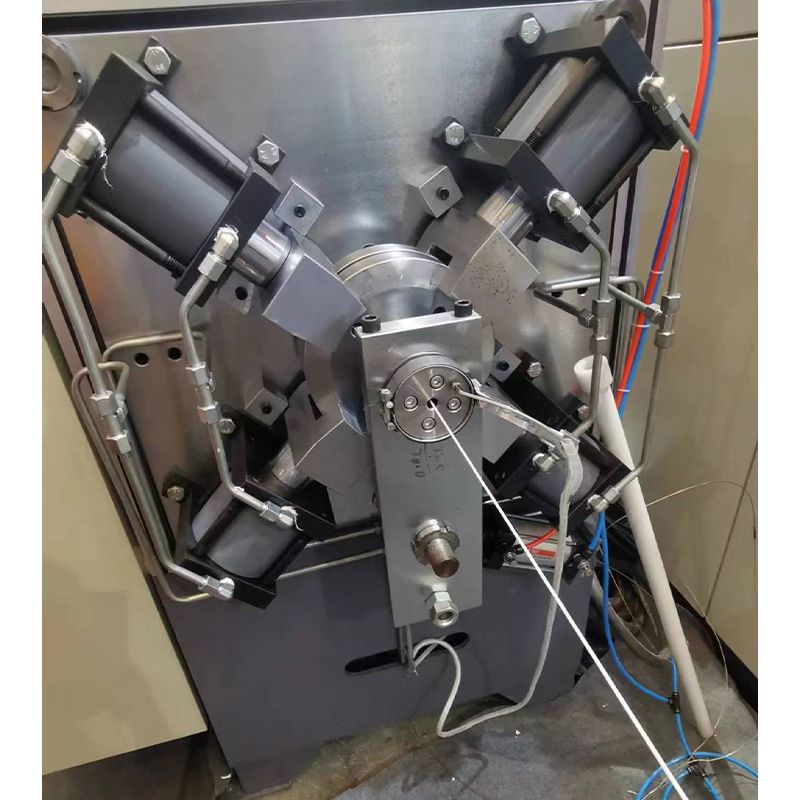

Extrusion host: the main equipment, which heats and melts the Teflon material through heating and screw extrusion, and extrudes the molten material into a cable with the required shape and size.
Pulling machine: used to pull the extruded Teflon cable to keep it at a stable speed and tension, and to help cool it down.

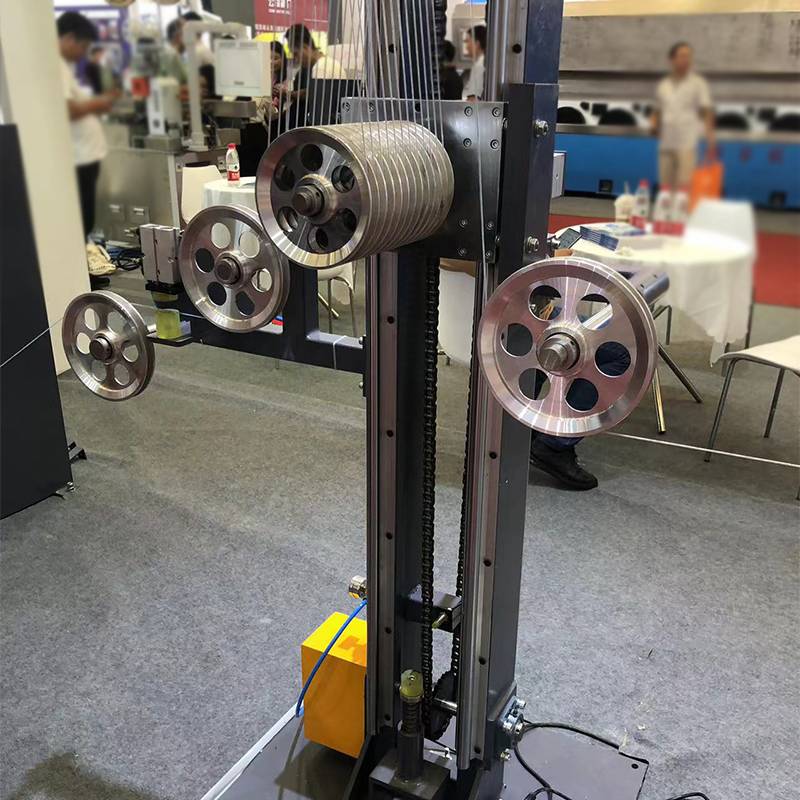

Wire Storage Rack: Used to collect and reel extruded Teflon cables.

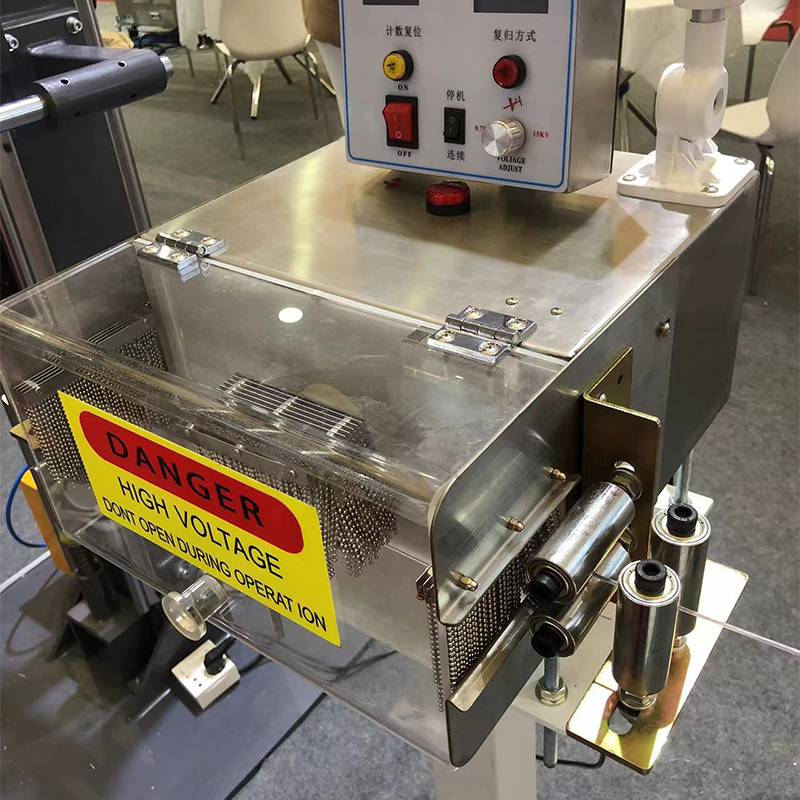

Spark testing machine: used to detect whether there are defects or damage on the surface of the extruded cable.
Meter Counter: Used to measure and record the length of extruded Teflon cables.

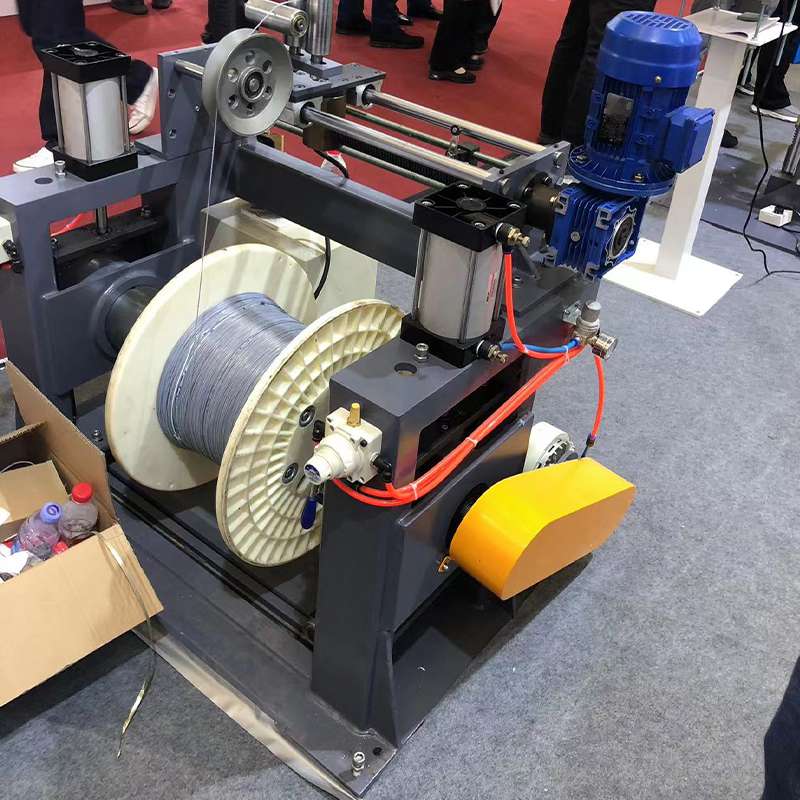

Coiling machine: used to wind the extruded Teflon cable into a drum or coil for subsequent use.
Electric control box: an electrical control system that controls the work of each component, and is used to adjust parameters such as extrusion speed and temperature.
These components work together to enable the extrusion line to efficiently and stably produce high-quality Teflon high-temperature cables.
